1000kg Mirror Passenger Panoramic Glass Elevator with Stainless Steel Doors

Feature 1. Safe and reliableThe FUJI passenger elevator puts safety first and is responsible to the customer and ensures that each passenger is safely delivered to the destination.2. Spatial configurabilityFrom a space-saving point of view, FUJI passenger elevators provide a new layout for the machine room, increasing space

Featured Products


Feature

1. Safe and reliable
The FUJI passenger elevator puts safety first and is responsible to the customer and ensures that each passenger is safely delivered to the destination.
2. Spatial configurability
From a space-saving point of view, FUJI passenger elevators provide a new layout for the machine room, increasing space availability.
3. Environmental protection and energy saving
FUJI passenger elevators use gearless permanent magnet synchronous motors to save energy and protect the environment.
4. High performance
The FUJI passenger elevator uses a stable control system with a maximum capacity of 1600kg. The intelligent lifting and dispatching system provides the best solution for customers' rides.
5. Self-selectivity
Customers can choose their own favorite and custom look for their elevators
From the perspective of automotive finishes, designs, ceilings and flooring materials.


1. How to provide you with after-sales service
1) The factory will provide an installation manual for your technical staff.
2) The factory can provide remote guidance for accurate commissioning.
3) For special requirements, the factory can send engineers to the site to help guide the installation.
4) For our agents, FUJI welcomes you to send technicians to our factory for inspection.


2. How to report after-sales problems
1) Please tell us the factory number or contract number, the factory can check the product specifications according to the code and quickly give a solution.
2) Send an email or call the foreign trade personnel who handed over.


Standard Decoration Optional(if you have other request,we can provide)

It's wallHairline stainless steel
CeilingLED Fluorescent, according to the car design
Car bottomPVC
Jamb materialThe first layer of hairline, the remaining steel plate Spraying
Hall doorThe first layer of hairline, the remaining steel plate Spraying

Passenger Elevator Parameter

Load capacity
(Kg)
Rated Speed
m/s
Car Size
cw*cd(mm)
Door Opening
Size ew*eh(mm)
Shaft
Size hw*hd(mm)
Top
floor height
Th(mm)
Pit Depth
(mm)
45011100×1100800×21002050×185045001500
63011400×1100800×21002250×190045001500
1.547001600
1.75
80011400×1350800×21002200×195040001500
1.5/
1.75
47001600
100011500×1550900×21002350×215040001600
1.5/
1.75
47001600
160011800*20001100*21002900*220043501500
1.5/
1.75
45001600


Machine roomless passenger elevator

It creates infite space possibilities
Machine room-less elevator removes machine room at building top.It is more flexible for building outline design.It applies the world's top grade design consept and well-developed control technology,frist-class fully computerized data network system.It gibes a full play of human intelligence,low-carbon and environment protection ideas.


1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door

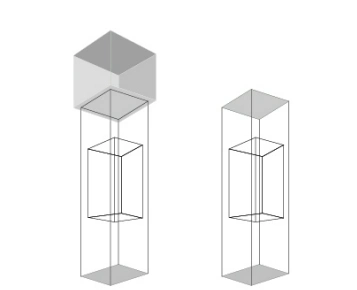

                    Machine room of               Machine roomless elevator
                the ordinary elevator

1.Intellectial main control system

1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door

It gives first priority to effectiveness in vertical transport field.In order to fully optimize the service efficacy of the elevator system,FUJI elevator fulfills the intellectual managements such as multi-computer,modular and network control etc.Through fully computerized intellectual control system.It instantly feeds back the elevator running conditions.It provides the passengers with the most efficient gold-collar services.

2.New generation permanent magnet synchronous traction machine

1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door

New generation permanent magnet synchronous and gearless traction machine chooses rare earth material.It fully merges with co-axial drive technology,digital variable frequency technology and group-computer combined technology with low running cost and low energy loss.

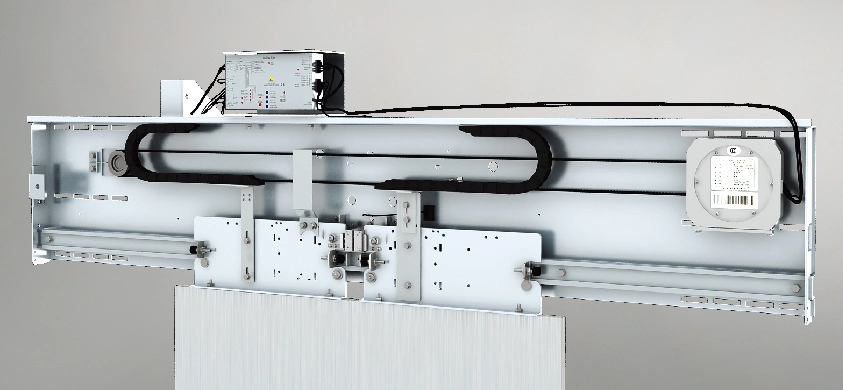

3.Top advanced door operator system

1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door


The door operator control system of FUJI elevator applies dual control system,One group is controlled by main controller of control cabint,the other one by door operator controller,which greatly reduces non-opening accidents due to trouble of door machine control.

4.Elevator decoration

1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door

Standard Functions

No.Description nameDescriptionNo.Description nameDescription
1Static electricity protectionEliminate static electricity raised from running of steps.11Over-load protectionProtection against risk of motor continually over-load.
2Emergency stop buttonPush the emergency stop button to shop the escalator/moving walk against emergency raise.12Step sagging protectionProtection against risk of steps being breakage and sagging.
3Skirting protectionProtection against risk of foreign bodies being jammed into clearance between steps and skirting.13Broken step chain protectionProtection against risk of steps being breakage or under elongation.
4Handrail entry safety protectionProtection against risk of foreign bodies being jammed into handrail entry.14Comb teeth safety protectionProtection against risk of foreign bodies being trapped at the point where the step enter the comb.
5Main drive chains safety protectionProtection against risk of drive chains being breakage or undue elongation.15Handrail speed and broken handrail monitorIt detects the handrail speed and monitors the broken handrail.
6Over-speed protectionProtection against risk of speed being over 20% of rated speed.16Skirting anti-clamp deviceIt sets protection brush in the skirting on both sides of the step.
7Under-speed protectionProtection against risk of speed less than over 80% of rated speed.17Step missing detectionIt detects the step missing in the stairway.
8Un-intentional reversal protectionProtection against risk of unintentional reversal protection.18The brake opens the monitor switchIt monitors whether the brake opens or not in during the escalator running.
9Floor-plate monitor switchWhen the pit cover plate opens,it cuts off safety circuit and stops the escalator safety switch.19Handwheel and handwheel protection cover open safetyDuring the use of handwheel,when open the handwheel and the handwheel protection cover,the safety switch will cut the safety circuit against escalator running.
10Short circuit protectionProtection against risk of short circuit.20Lack of phase,error phase protection

Protection against risk of phase failure.


The perfect and comfortable life

FUJI passenger elevator can offer you a pleasant ambience,special inverter system control the running position,upgrading the comfort feeling all-sided.Low noise,easy installation,accomplish you perfect living condition.Not only reduce the cost of designing and building on machine room,also make best use of yourbuiliding room.Small occupying space.No hoistway,safe and durable elevator is provided for you by FUJI.

1000kg Mirror Finish Passenger Panoramic Glass Elevator with Stainless Steel Door

About us

Huzhou fuji elevator company adheres to the advanced international elevator management mode and innovative fruits in technical field.It actively introduces the first-class elevator manufacture equipment.It establishes the perfect and superior product system.It takes the management ideas of "since,creditable,promise-keeping,cooperation and double-win".it is engaged in sci-tech innovation.

It owns multiple original core technologies.At present,the products cover passenger elevator(small machine room,traction type villa elevator),freight elevator.automobile elevator,escalator,moving walk series etc.According to the user's requirements, it executes the market operation mode which integrates the manufacture,sales,installation,repair and maintenance into one.It design and produces different kinds of plural elevators as per the user's actual.
