3000kg Service Car Elevator Freight Lift Goods Moving System
Syney cargo elevator creates new concept of goods moving, and ensures best loading capacity with wide open space. Safe and reliable, highstructure strength, endurable and smooth running, Syney freight lift, your best choice for supermarkets, shopping malls, logistic centers, exhibition centers, factories and warehouses, and be able to work under any strict working conditions.
1. Multi beam door sensor
Multi infrared light covers the whole door height, to ensure the safey of passnegers and goods passing door area. When light beam is blocked, closing car door will rapidly open to make sure passengers and goods can safely get in or out.
2. Long life time usage
Main part of freight elevator car is designed by steel strucure, steel panel with bumper structure on cabin wall is used to protect cabin from goods impact, so as to increase the service life of the elevator cabin.
3. Anti-skid floor design
Syney freight elevator cabin adopts floating-poit rubber, which is skidfprood and durable.
4. VVVF door operator
Syney goods lift is euipped with VVVF technology drive system, with high reliability and low failure rate.
5. High-level performance
Installation is hightly standardized and flexible. With machine room or without machine room, components are designed and manufactured by systematic thinking, to create smooth and comforatble riding experience.
Freight elevator cabin design
Parameters: Freight Elevator With Machine Room
|Syney-THJ-Freight Elevator with Machine room|
|One Cabin door:|
|Capacity||Speed||Cabin Size||Shaft Size||Min Floor H||Max Travel||Min Floor H|
|DL||V||Width||Depth||Open||Width||Depth||Pit||Min D||Max R||Min D|
|1000||0.5||1500||1500||Side open: 1200*2100||2400||2100||4500||2500||25||2700|
|1600||0.5||1700||2000||Side open: 1300*2100||2700||2600||4500||2500||25|
|2000||0.5||2000||2000||Side open/ 4 panels center open: 1500*2100||3000||2700||4500||2500||25|
|3000||0.5||2000||2800||Side open/ 4 panels center open: 1600*2100||3100||3400||4800||3000||25|
|5000||0.25||2400||3700||4 panels center open: 1800*2100||3600||4300||4800||3000||16|
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
Manufacturing, Packing and Delivery
Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manufacture, marketing, installation and customer service. The company applies whole set of advanced equipments and specializes in design and manufacture of products including passenger elevator, panoramic elevator, bed elevator, cargo elevator, home elevator, car elevator, escalator, moving walks, etc. Syney sales network expands to over 50 countries in Europe, Asia, Africa and America.

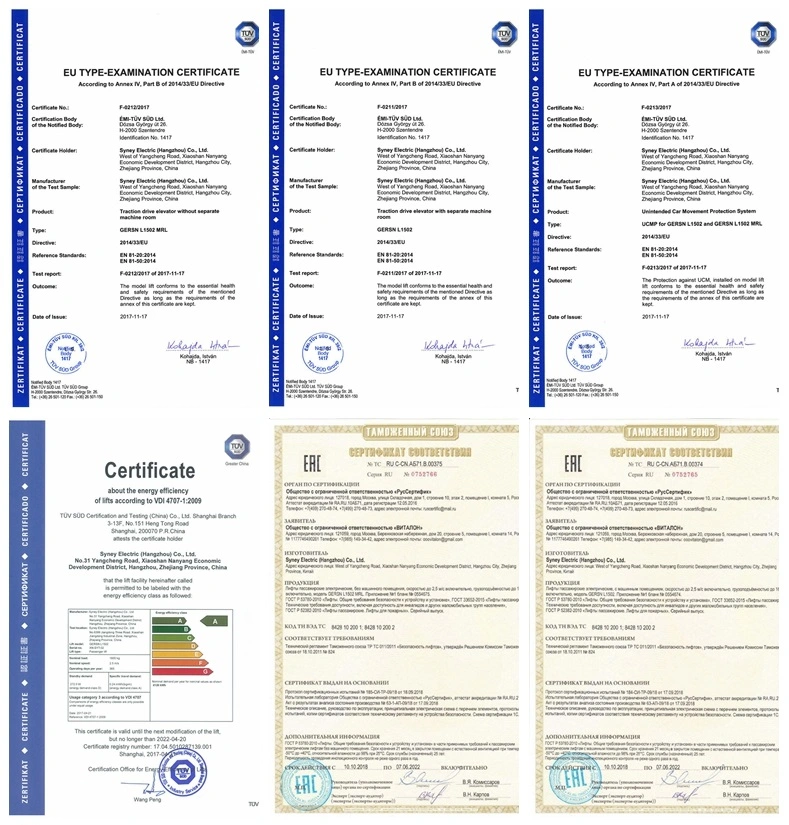

CE Certificate of Elevator with machine room and Elevator without machine room, and UCMP device
CE Certificate of energy-efficiency of lifts: Grade A
EAC Certificate Elevator with machine room and Elevator without machine room
