250kg small elevator lift elderly hydraulic aluminum wheelchair lift

250kg Small Elevator Lift Elderly LiftWheelchair lift is special designed for disabled and elderly people,so it very stable and safety.The wheelchair lift is made of high-end aluminum, which is very good in process, easy to disassemble and assemble, and not like the Welded iron material,has a rough workmanship.We mainly pro

Featured Products



250kg Small Elevator Lift Elderly Lift

Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.
The wheelchair lift is made of high-end aluminum, which is very good in process, easy to disassemble and assemble, and not like the Welded iron material,has a rough workmanship.

We mainly produce the wheelchair lift from 1m-10m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.

1. Data Sheet:
Standard model of 1 meter to 3 meter maximum platform height
Model TypeWL2510WL2515WL2520WL2525WL2530
Max. Platform Height1000mm1500mm2000mm2500mm3000mm
Load Capacity250kg250kg250kg250kg250kg
N.W/G.W(kg)350/450450/550550/700700/850780/900
Machine Size(mm)2000*1430*
1300
2500*1430*
1300
3000*1430*
1000
3500*1430*
1000
4000*1430*
1000
Standard model of 3 meter to 6 meter maximum platform height
Model TypeWL2530WL2535WL2540WL2550WL2560
Max. Platform Height3000mm3500mm4000mm5000mm6000mm
Load Capacity250kg250kg250kg250kg250kg
N.W/G.W(kg)780/900850/1000880/10501000/12001100/1300
Machine Size(mm)4000*1430*
1000
4600*1430*
1000
5100*1430*
1000
6100*1430*
1000
7100*1430*
1000
Here as below are the same specification for all models from 1 meter to 6 meters.
Platform size1430*1000mm skid proof checkered steel
Min Platform height60mm
Speed0.06~0.1m/s
Control voltage24V/DC
Power Output1.1~2.2KW
VoltageAs per your local Standard(single phase or three phase)
Drive SystemHydraulic pump station and electric motor (See details below)
Control ModeAutomatic travel switch(See details below)
Drive ControlSelf-resetting system
OverloadOver current relay protection
MaterialsAluminium rails and guard with spraying plastics. (See details below)
Working ConditionBoth indoors and outdoors -20°~70°C
Entrance-Exit WayIt's customized 90°or  180°
InstallationNo pit installing,easy to install and remove
<3.0m,installed directly on the floor.  >3.0m, installed both on the floor and on the wall.
Switches
(See details below)
  1. One control panel on the platform
  2. Install two column switches on ground, which can be fixed at any floor needed.
  3. Remote control, user can operate lift within 20m.


 2. Photos Review:
250kg Small Elevator Lift Elderly Hydraulic Aluminum Wheelchair Lift



Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

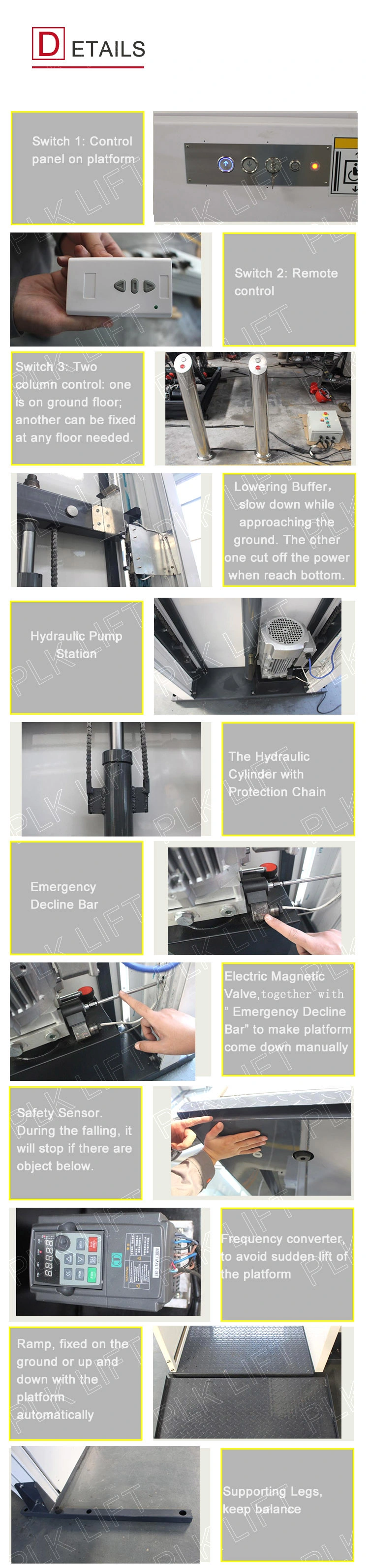

3. Details Display:
250kg Small Elevator Lift Elderly Hydraulic Aluminum Wheelchair Lift



4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)
250kg Small Elevator Lift Elderly Hydraulic Aluminum Wheelchair Lift



5. Welcome to visit our factory and place the order with us.
250kg Small Elevator Lift Elderly Hydraulic Aluminum Wheelchair Lift

6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
